UL 1674 PVC HOOK-UP WIRE
Rated Temperature: 105℃
Rated Voltage: 300V

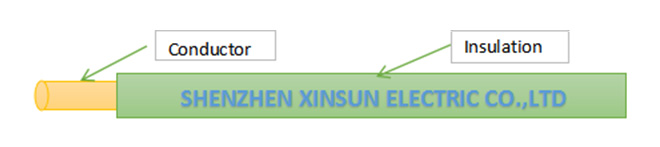

Conductor: Stranded or solid copper
Insulation: Lead Free PVC
Application: For internal wiring of electronic and electrical equipment
Details
| Conductor導體 | Insulation 絕緣 | Resistance at 20℃ | Pack包裝 | ||||
| AWG 線號 | NO.條數(shù) | Dia. 線徑 | Dia.外徑 | Thick厚度 | O.D 直徑 | 20度時導體電阻Ω/KM | M/coil 米/卷 |
| 30 | 7 | 0.100 | 0.30 | 0.33 | 0.96 | 354.00 | 610 |
| 28 | 7 | 0.127 | 0.38 | 0.33 | 1.04 | 223.00 | 610 |
| 26 | 7 | 0.160 | 0.48 | 0.33 | 1.14 | 139.00 | 610 |
| 25 | 7 | 0.150 | 0.55 | 0.33 | 1.21 | 98.54 | 610 |
| 24 | 11 | 0.160 | 0.61 | 0.33 | 1.27 | 88.90 | 610 |
| 23 | 11 | 0.180 | 0.69 | 0.33 | 1.35 | 62.70 | 610 |
| 22 | 17 | 0.160 | 0.76 | 0.33 | 1.42 | 51.35 | 610 |
| 21 | 21 | 0.160 | 0.85 | 0.33 | 1.51 | 41.75 | 610 |
| 20 | 21 | 0.180 | 0.95 | 0.33 | 1.61 | 32.85 | 610 |
| 19 | 21 | 0.200 | 1.06 | 0.33 | 1.72 | 26.60 | 610 |
| 18 | 41 | 0.160 | 1.18 | 0.33 | 1.84 | 23.30 | 610 |
| 17 | 33 | 0.200 | 1.33 | 0.33 | 1.99 | 16.93 | 610 |
| 16 | 26 | 0.254 | 1.49 | 0.33 | 2.15 | 13.32 | 610 |
| 15 | 52 | 0.200 | 1.67 | 0.33 | 2.33 | 10.74 | 305 |
| 14 | 41 | 0.254 | 1.88 | 0.33 | 2.54 | 8.44 | 305 |
| 13 | 52 | 0.254 | 2.12 | 0.33 | 2.78 | 6.66 | 305 |
| 12 | 65 | 0.254 | 2.37 | 0.33 | 3.03 | 5.32 | 305 |
| 30 | 1 | 0.254 | 0.25 | 0.33 | 0.91 | 354.00 | 610 |
| 28 | 1 | 0.320 | 0.32 | 0.33 | 0.98 | 223.00 | 610 |
| 26 | 1 | 0.404 | 0.404 | 0.33 | 1.06 | 139.00 | 610 |
| 25 | 1 | 0.455 | 0.455 | 0.33 | 1.12 | 98.54 | 610 |
| 24 | 1 | 0.511 | 0.511 | 0.33 | 1.17 | 88.90 | 610 |
| 23 | 1 | 0.574 | 0.574 | 0.33 | 1.23 | 62.70 | 610 |
| 22 | 1 | 0.643 | 0.643 | 0.33 | 1.30 | 51.35 | 610 |
| 21 | 1 | 0.724 | 0.724 | 0.33 | 1.38 | 41.75 | 610 |
| 20 | 1 | 0.813 | 0.813 | 0.33 | 1.47 | 32.85 | 610 |
| 19 | 1 | 0.912 | 0.912 | 0.33 | 1.57 | 26.60 | 610 |
| 18 | 1 | 1.020 | 1.020 | 0.33 | 1.68 | 23.30 | 610 |
| 17 | 1 | 1.150 | 1.150 | 0.33 | 1.81 | 16.93 | 610 |
| 16 | 1 | 1.290 | 1.290 | 0.33 | 1.95 | 13.32 | 610 |
