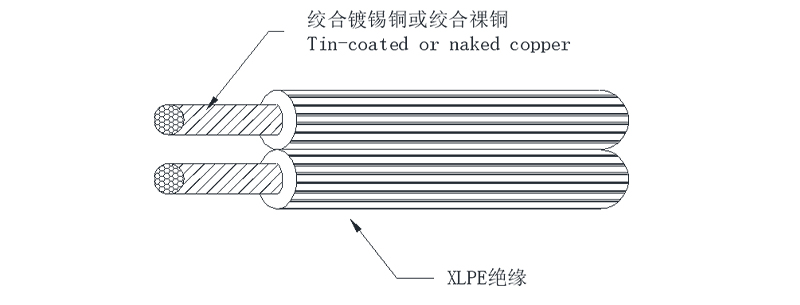

UL 4462 XLPE FLAT RIBBON CABLE
Rated Temperature: 150℃
Rated Voltage: 600V
Conductor: Stranded or solid copper
Insulation: Lead Free XLPE
P NO.: 2-10P
Application: For internal wiring of electronic and electrical equipment
Details
| Conductor 導體 | Insulation 絕緣 | Resistance at 20℃ | Pack 包裝 | |||||
| 線號 | 條數 | 線徑 | 外徑 | 厚度 | 完成直徑 | 排數 | 20度導體電阻Ω/KM | 米/卷 |
| AWG | NO. | Dia. | Dia. | Thick | O.D*P | P NO. | M/coil | |
| 26 | 7 | 0.16 | 0.48 | 0.76 | 2 | 2 | 139 | 610 |
| 24 | 11 | 0.16 | 0.61 | 0.76 | 2.13 | 2 | 88.9 | 610 |
| 22 | 17 | 0.16 | 0.76 | 0.76 | 2.28 | 2 | 51.35 | 610 |
| 20 | 21 | 0.18 | 0.95 | 0.76 | 2.47 | 2 | 32.85 | 610 |
| 18 | 41 | 0.16 | 1.18 | 0.76 | 2.7 | 2 | 23.3 | 610 |
| 16 | 26 | 0.254 | 1.49 | 0.76 | 3.01 | 2 | 13.32 | 610 |
| 26 | 7 | 0.16 | 0.48 | 0.76 | 2 | 3 | 139 | 610 |
| 24 | 11 | 0.16 | 0.61 | 0.76 | 2.13 | 3 | 88.9 | 610 |
| 22 | 17 | 0.16 | 0.76 | 0.76 | 2.28 | 3 | 51.35 | 610 |
| 20 | 21 | 0.18 | 0.95 | 0.76 | 2.47 | 3 | 32.85 | 610 |
| 18 | 41 | 0.16 | 1.18 | 0.76 | 2.7 | 3 | 23.3 | 610 |
| 16 | 26 | 0.254 | 1.49 | 0.76 | 3.01 | 3 | 13.32 | 610 |
| 26 | 7 | 0.16 | 0.48 | 0.76 | 2 | 4 | 139 | 610 |
| 24 | 11 | 0.16 | 0.61 | 0.76 | 2.13 | 4 | 88.9 | 610 |
| 22 | 17 | 0.16 | 0.76 | 0.76 | 2.28 | 4 | 51.35 | 610 |
| 20 | 21 | 0.18 | 0.95 | 0.76 | 2.47 | 4 | 32.85 | 610 |
| 18 | 41 | 0.16 | 1.18 | 0.76 | 2.7 | 4 | 23.3 | 610 |
| 16 | 26 | 0.254 | 1.49 | 0.76 | 3.01 | 4 | 13.32 | 610 |
| 26 | 7 | 0.16 | 0.48 | 0.76 | 2 | 5 | 139 | 305 |
| 24 | 11 | 0.16 | 0.61 | 0.76 | 2.13 | 5 | 88.9 | 305 |
| 22 | 17 | 0.16 | 0.76 | 0.76 | 2.28 | 5 | 51.35 | 305 |
| 20 | 21 | 0.18 | 0.95 | 0.76 | 2.47 | 5 | 32.85 | 305 |
| 18 | 41 | 0.16 | 1.18 | 0.76 | 2.7 | 5 | 23.3 | 305 |
| 16 | 26 | 0.254 | 1.49 | 0.76 | 3.01 | 5 | 13.32 | 305 |
| 26 | 7 | 0.16 | 0.48 | 0.76 | 2 | 6 | 139 | 305 |
| 24 | 11 | 0.16 | 0.61 | 0.76 | 2.13 | 6 | 88.9 | 305 |
| 22 | 17 | 0.16 | 0.76 | 0.76 | 2.28 | 6 | 51.35 | 305 |
| 20 | 21 | 0.18 | 0.95 | 0.76 | 2.47 | 6 | 32.85 | 305 |
| 18 | 41 | 0.16 | 1.18 | 0.76 | 2.7 | 6 | 23.3 | 305 |
| 16 | 26 | 0.254 | 1.49 | 0.76 | 3.01 | 6 | 13.32 | 305 |
